Description

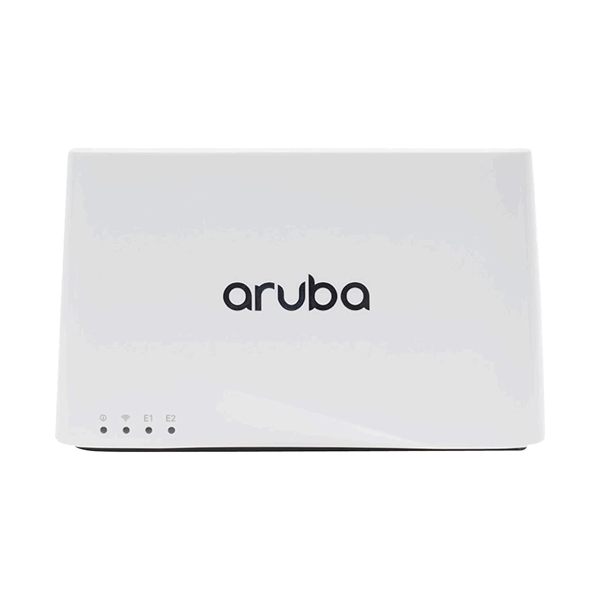

This compact access point ensures the most cost-effective Wi-Fi connectivity for indoor premises including hotel rooms, dormitories, small offices and remote workstations. It’s software configurable to operate in either 1×1 dual radio mode, or 2×2 single radio mode.
Overview
Because of the COVID-19 epidemic and the development of hybrid work models, the workplace has changed tremendously. More than half of employees are likely to work remotely at least part of the time post-pandemic, making hybrid and remote work a permanent element of the workplace.
Providing remote teams with the capacity to connect, collaborate, and access the tools and data they need to execute their jobs has become a must for almost every company. As IT businesses change their network architectures for work from anywhere, ensuring that this connectivity and collaboration is done in a safe and compliant manner is a top priority.
Specifications
RAP-203R Series Specifications
Unified flexible radio 802.11ac remote AP with internal antennas. Supports wall-box and desk mount deployments.
Wi-Fi Radio Specifications
- AP type: Indoor, flex radio
- 5GHz 802.11ac 2×2 MIMO OR 2.4GHz 802.11n 2×2 MIMO1, or 5GHz 802.11ac 1×1 AND 2.4GHz 802.11n 1×1
- Software-configurable radio supports 5GHz (Radio 0) and/or 2.4GHz (Radio 1)
- Up to 867Mbps (5GHz) and 400Mbps (2.4GHz) data rates
- Supports up to 256 associated client devices per radio and 16 BSSIDs per radio
- Dynamic frequency selection (DFS)
- Transmit power: Configurable in 0.5 dBm steps
- Advanced features: ACC, MRC, CDD, STBC, LDPC, TxBF
Wi-Fi Antennas
Two integrated dual-band omni-directional antennas (2×2 MIMO) with max gain: 0.7dBi (2.4GHz), 1.0dBi (5GHz). Peak effective gain: -0.4dBi (2.4GHz), 0.5dBi (5GHz).
Other Interfaces
- Uplink: 1x 10/100/1000BASE-T Ethernet (RJ-45, back)
- Local: 2x 10/100/1000BASE-T Ethernet (RJ-45, back)
- PoE-PSE output (on E2 port, AP-203RP models)
- Bluetooth Low Energy (BLE) radio
- USB 2.0 host (Type-A, top) for modem or device charging (up to 1A/5W)
- AC power: 2-prong IEC 60320-1 C8 receptacle (back)
- LEDs for system, radio, and port status
- Reset/LED control button
- Serial console (custom uUSB jack)
Power Sources And Consumption
- AC power input: 90V – 265V, 47Hz – 63Hz
- Max power consumption: 7.5W (excluding external devices)
- Idle mode consumption: 4.6W
- Up to 6W (USB device) and 18W (PoE-PD device) additional load possible
