Description
Overview

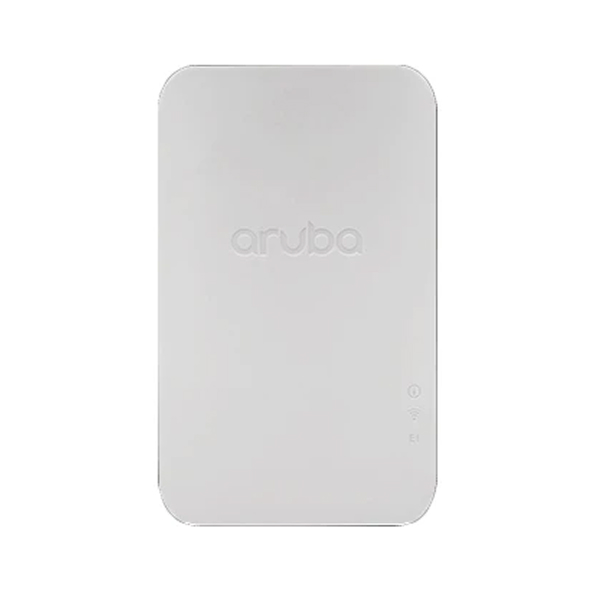

This compact access point ensures the most cost-effective Wi-Fi connectivity for indoor premises including hotel rooms, dormitories, small offices, and remote workstations. It’s software configurable to operate in either 1×1 dual radio mode, or 2×2 single radio mode.
Powered by PoE, it minimizes power consumption with rich features that further facilitate a highly efficient and reliable wireless network and combines wireless and wired access in a single compact device.
This AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk-mounted AP using an optional mounting kit.
AP-203H SERIES SPECIFICATIONS
Unified flexible radio 802.11ac 2×2:2SS hospitality and branch AP with internal antennas.
Supports wall-box and desk mount deployments.
WI-FI RADIO SPECIFICATIONS
AP type: Indoor, flexible radio:
Software-configurable radio supports 5GHz (Radio 0) and/or 2.4GHz (Radio 1)
- 5GHz: Two spatial stream SU-MIMO for up to 867Mbps
- 2.4GHz: Two spatial stream SU-MIMO for up to 400Mbps
- Up to 32 clients per radio, 8 BSSIDs per radio
- Frequencies: 2.4GHz and multiple 5GHz bands (DFS supported)
- Radio technologies: DSSS, OFDM
- Modulations: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit Power
- Configurable in 0.5 dBm steps
- 2.4GHz: +18 dBm/chain, +21 dBm aggregate
- 5GHz: +16 dBm/chain, +19 dBm aggregate
(Note: Excludes antenna gain)Other Features - MRC, CDD/CSD, STBC, LDPC, TxBF
- Short GI for 20/40/80MHz
- Data rates (Mbps): 802.11b (1–11), 802.11a/g (6–54), 802.11n (6.5–300), 802.11ac (6.5–867)ANTENNAS
Two integrated dual-band antennas (2×2 MIMO): - 2.4GHz max gain: 4.9dBi
- 5GHz max gain: 6.0dBi
- Effective peak gain: 2.3dBi (2.4GHz), 3.4dBi (5GHz)
- Optimized for vertical orientation with 120° horizontal beamwidth
OTHER INTERFACES
- Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
- PoE input: 48V 802.3af/at
- Local Ethernet: 10/100/1000BASE-T (RJ-45, bottom)
- Passive pass-through ports (2x RJ-45)
- USB Type A: for Aruba LS-BT1USB BLE module
- LEDs: System, radio, local port
- Reset/LED button for factory reset and LED control
- Custom serial console (micro USB)
