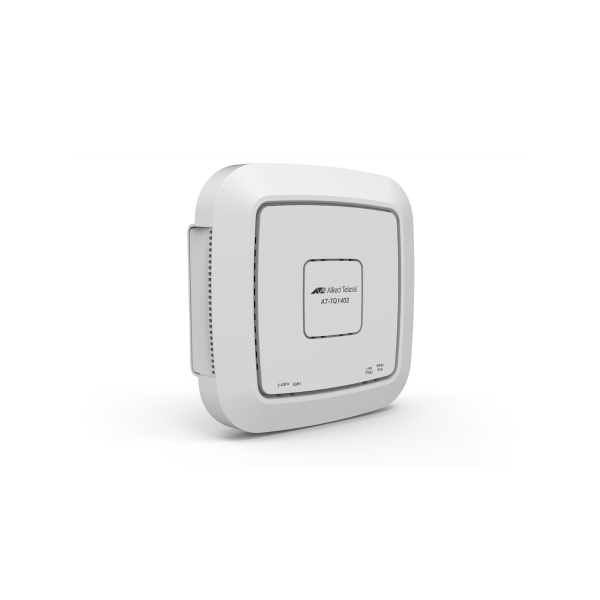

The Allied Telesis TQm1402 is a cost-effective 2-radio 802.11ac Wave 2 Wireless Access Point with two spatial streams, delivering up to 1.167 Gbps of raw wireless capacity. Designed for enterprise-grade deployments, it ensures high-speed connectivity and centralized management capabilities.
Operational Modes
- Centrally managed in multi-channel mode via Vista Manager EX (up to 100 APs)(1)
- Standalone operation
Management
- Graphical User Interface (HTTP/HTTPS)
- Simple Network Management Protocol (SNMPv1, v2c)
- Firmware upgrade and settings backup/restore
- Syslog notifications
- DHCP and NTP client support
Security
- IEEE 802.1X authentication and RADIUS support
- Shared Key Authentication
- WPA/WPA2 (Enterprise & Personal), WPA3 (Enterprise2 & Personal)
- Captive Portal support
- MAC address filtering (up to 1024 addresses)
- SSID hiding and client isolation
- Neighbor AP detection
- Encryption:
- WEP (64/128 bit for 802.11a/b/g)
- WPA/WPA2: CCMP (AES), TKIP
- WPA3: CCMP (AES/CNSA)
Environmental Specifications
- Operating Temp (PoE): 0°C to 50°C (32°F to 122°F)
- Operating Temp (AC): 0°C to 45°C (32°F to 113°F)
- Storage Temp: -25°C to 70°C (-13°F to 158°F)
- Operating Humidity: 90% non-condensing
- Storage Humidity: 95% non-condensing
Embedded Antennas
- Omni-directional antenna for 2.4 GHz band, max. peak gain: 1.9 dBi
- Omni-directional antenna for 5 GHz band, max. peak gain: 3.7 dBi
