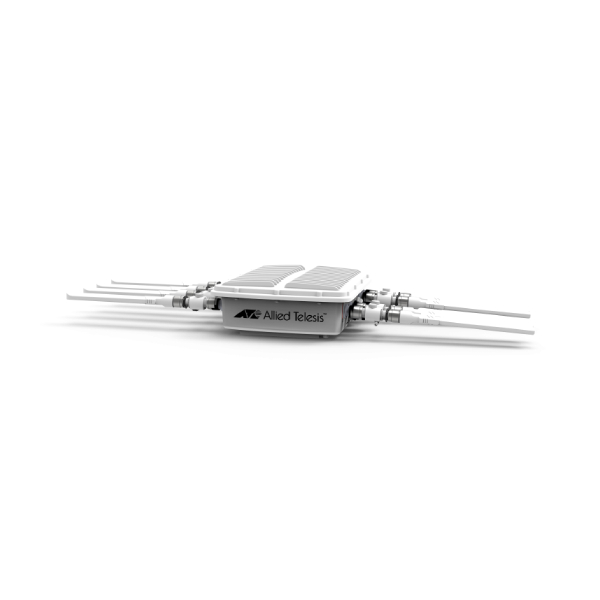

The Allied Telesis TQ5403e is a hybrid outdoor 3-radio IEEE 802.11ac Wave 2 Wireless Access Point, engineered for enterprise-grade performance. Featuring dual spatial streams and a raw capacity of 2.133 Gbps, it supports multi-channel, single-channel, or hybrid operations—ideal for scalable wireless deployments.
Operational Modes
The TQ5403e can be deployed in multiple configurations:
- Centrally managed in multi-channel mode via Vista Manager EX (up to 3,000 APs)
- Centrally managed in hybrid or single-channel mode (100 APs per Channel Blanket)
- Standalone operation
Management Features
- Web GUI (HTTP/HTTPS)
- SNMP v1/v2c support
- Firmware upgrade and settings backup/restore
- Syslog notifications
- DHCP and NTP client support
Security Features
- Captive Portal with RADIUS and Click-Through authentication
- IEEE 802.1X with RADIUS support
- WPA/WPA2/WPA3 (Enterprise and Personal)
- MAC address filtering (up to 1024 addresses)
- SSID hiding, client isolation, neighbor AP detection
Encryption Standards
- WEP 64/128-bit (802.11a/b/g only)
- WPA/WPA2: CCMP (AES), TKIP
- WPA3: CCMP (AES/CNSA)
Environmental Specifications
- Operating Temperature: -40°C to 65°C (-40°F to 149°F)
- Storage Temperature: -40°C to 80°C (-40°F to 176°F)
- Operating Humidity: 5% to 95% (non-condensing)
- Storage Humidity: 5% to 95% (non-condensing)
- Maximum Operating Altitude: 3,048 meters (10,000 feet)
