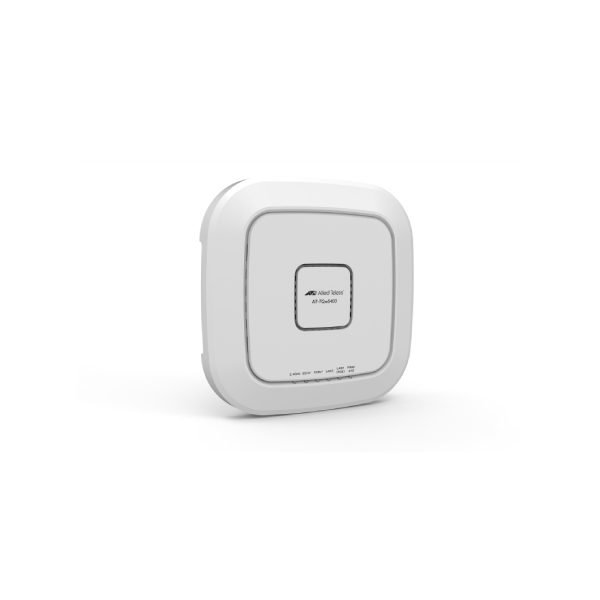

The Allied Telesis TQm5403 is an enterprise-class, 3-radio 802.11ac Wave 2 wireless access point, ideal for small to medium-sized businesses. Designed for high performance and reliability, it offers seamless deployment and centralized or standalone management options.
Operational Modes
- Centrally managed in multi-channel mode via Vista Manager EX (up to 100 APs)
- Standalone operation
Management Features
- Graphical User Interface (HTTP/HTTPS)
- SNMP support (v1, v2c)
- Firmware upgrade and settings backup/restore
- Syslog notifications
- DHCP client and NTP client
Security Features
- IEEE 802.1X authentication and RADIUS support
- WPA/WPA2/WPA3 (Enterprise & Personal) with AES, TKIP, and CNSA encryption
- MAC address filtering (up to 1024 entries)
- Captive portal with External RADIUS or Click-Through
- Client isolation, SSID hiding, and neighbor AP detection
Environmental Specifications
- Operating Temperature (PoE): 0°C to 50°C (32°F to 122°F)
- Operating Temperature (AC adapter): 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
- Operating Humidity: Up to 90% (non-condensing)
- Storage Humidity: Up to 95% (non-condensing)
