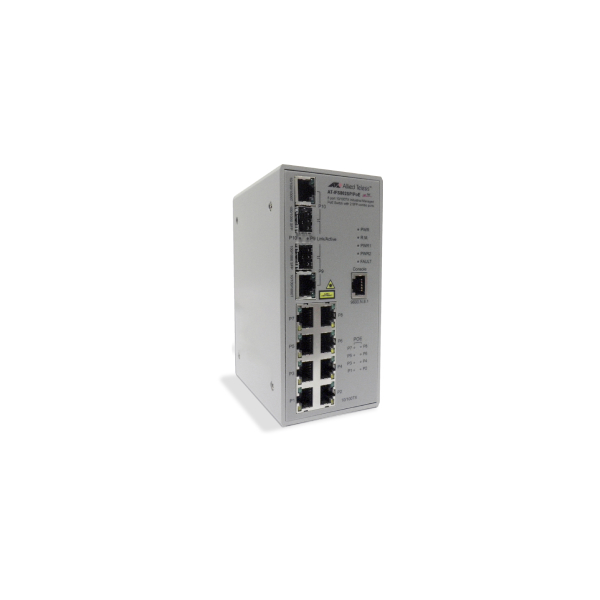

This 10-port managed Gigabit Ethernet switch is engineered for demanding industrial applications, offering advanced Layer 2 features, robust PoE support, and a wide operating temperature range. Its compact desktop enclosure and multiple management options make it suitable for versatile deployments.
Performance & Connectivity
The switch includes 8 x 10/100Base-TX ports, 2 x combo SFP ports, and additional SFP interfaces, with a switching capacity of 5.6 Gbps and 8.3 Mbps throughput. It supports 8K MAC address entries for efficient traffic management.
Features & Benefits
- Advanced Layer 2 Management: SNMP v1/v2c/v3, RMON, HTTP, and CLI remote management.
- High Power PoE: Delivers PoE via supported ports, ensuring reliable power for connected devices.
- Durable Design: Desktop enclosure with a rugged build, compliant with multiple industry standards.
- Environmental Resilience: Operates in extreme conditions (-40 °F to 167 °F) and supports 5–95% humidity.
- Redundant Power Supply: Internal 48V DC with redundancy support and up to 131W power consumption.
Specifications
Device Type: Managed switch – 10 ports
MAC Address Table: 8K entries
PoE Support: Yes (802.3af)
Standards Compliance: IEEE 802.3 series, IEEE 802.1x, LLDP, and more
RAM / Flash Memory: 32 MB / 4 MB
Status Indicators: Power, Link/Activity
Interfaces
- 8 x 100Base-TX – RJ-45
- 2 x RJ-45
- 4 x SFP (mini-GBIC)
- 1 x console – RJ-45 (management)
Power & Consumption
Power Device: Internal power supply
Redundancy: Supported (Installed Qty: 3 max)
Voltage: DC 48V
Power Consumption: 131W operational
Environmental & Compliance
- Operating Temperature: -40 °F to 167 °F
- Storage Temperature: -40 °F to 185 °F
- Humidity: 5 – 95% (non-condensing)
- Certifications: FCC Class A, UL, EN, IEC standards
Warranty
Manufacturer Warranty: 5 Years Limited
