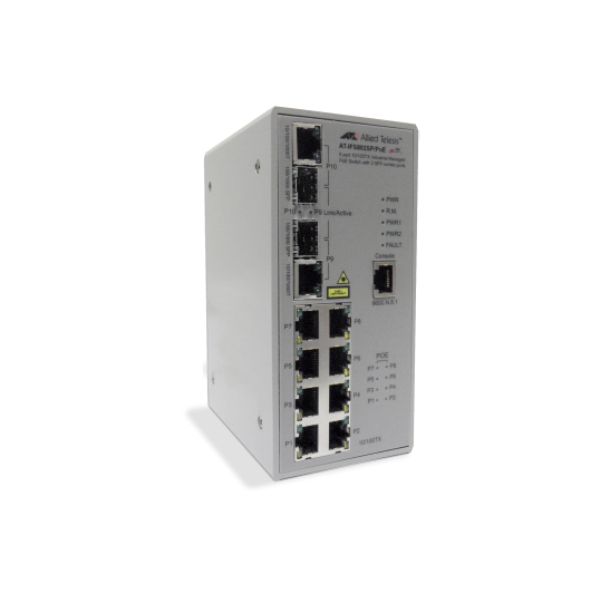

This managed Fast Ethernet switch is designed for small-scale industrial or office environments needing reliable network performance. With eight 10/100 RJ-45 ports and two combo SFP ports, it supports essential features like QoS, VLANs, and IGMP snooping for optimized traffic management and multicast performance.
Features & Benefits
Switching & Networking Capabilities
- Switching capacity of 5.6 Gbps for fast data handling
- Supports IEEE 802.1D/Q/p/w/x and more for enhanced interoperability
- DHCP server support with port mirroring and IGMP snooping
- Up to 8000 MAC addresses and 256 VLANs for network segmentation
Management & Control
- Managed switch with SNMP v1/v2c/v3 protocol support
- Web-based, Telnet, and CLI management interfaces
- QoS and multicast support for optimized traffic prioritization
Design & Build
- Metal housing with IP30 protection for industrial durability
- LED indicators for link, activity, and power status
- Compact form factor, not rack-mountable
Performance & Reliability
- Firmware upgradeable and non-stackable
- MTBF: 272,761 hours for long-term reliability
- Packet buffer: 0.13 MB with 4096 KB buffer size
Power & Environmental
- 24V output, 1A current with typical 8.064W power consumption
- Operating temperature: -10°C to 65°C, humidity: 5–95%
- Storage temperature: -40°C to 85°C
Certifications & Compliance
UL, cUL, CE, FCC, RoHS, and WEEE compliant.
Dimensions & Packaging
- Width: 72 mm | Depth: 115 mm | Height: 152 mm
- Weight: 1340 g
- User guide included in packaging
