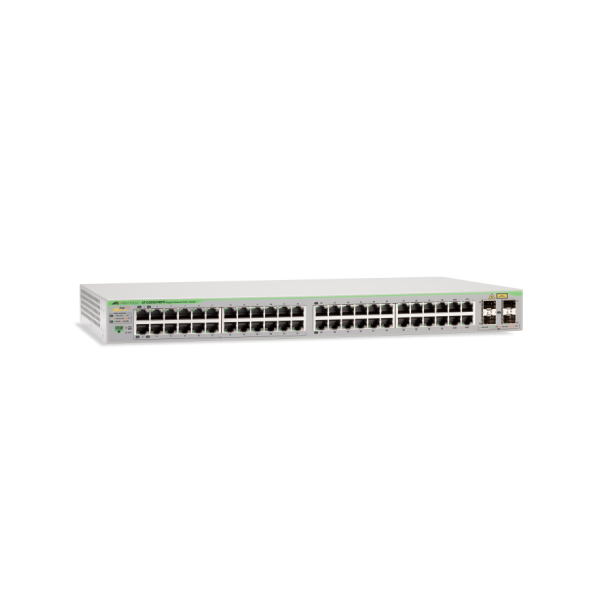

The Allied Telesis 48-Port Managed Gigabit Switch is a robust and flexible solution for enterprise and educational networks. With PoE+ capabilities, high switching performance, and advanced management features, it meets the demands of high-bandwidth applications such as video streaming, VoIP, and multimedia transfers.
Features & Benefits
- Port Configuration: 24 x 10/100/1000 PoE+, 20 x 10/100/1000, and 4 x combo Gigabit SFP ports
- Power Over Ethernet: Supports PoE+ with a total power budget of 370W
- Performance: Switching capacity of 96 Gbps and 71.42 Mpps throughput for high data traffic environments
- Advanced Management: Supports SNMP (v1/2c/3), RMON (1, 2, 3, 9), HTTP for remote configuration
- Security: Features MD5 encryption, RADIUS authentication, and 802.1X security
- Standards Compliance: IEEE 802.3 series, 802.1D/Q/p/x/w/x/at, LACP
- Jumbo Frame Support: Up to 10KB jumbo frames for optimized large data packet transfers
- Physical Design: Suitable for desktop, rack, or wall-mount installation; includes mounting kit
- Durability: Built with an internal power supply, 263,000-hour MTBF, and a rugged design
- Environmental Tolerance: Operates between 0°C–40°C, non-condensing humidity range of 5–90%
Technical Specifications
- MAC Address Table Size: 8K entries
- ACL Entries: 240
- Virtual Interfaces (VLANs): 256
- RAM: 64 MB
- Flash Memory: 16 MB
- Dimensions: 44 cm (W) x 43 cm (D) x 4.4 cm (H)
- Weight: 6.62 kg
- Power Consumption: 55.5W operational
- Voltage Requirement: AC 120/230V, 50/60Hz
Warranty & Certifications
- Warranty: Limited lifetime warranty
- Certifications: FCC Class A, CSA, TUV, C-Tick, RoHS, VCCI, UL, EN60950, and more
