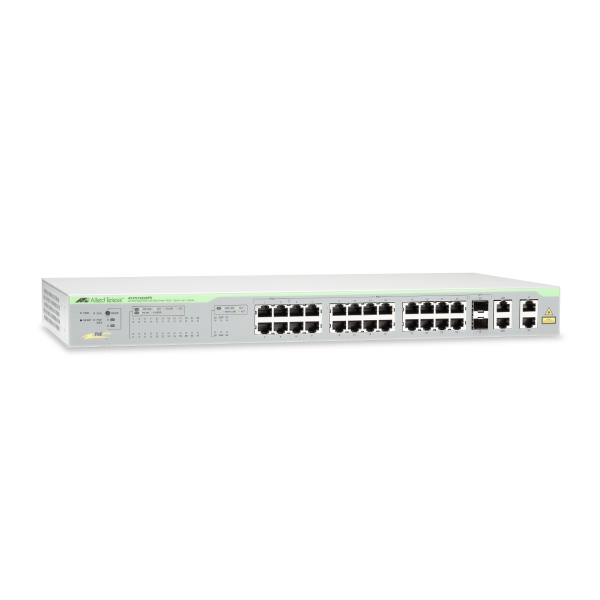

This managed 28-port Fast Ethernet switch delivers high-performance switching for small to medium-sized business networks. It offers 24 PoE ports with support for PoE+ on 4 ports, and 2 combo SFP uplinks, ideal for scalable and flexible network deployments.
Ports & Interfaces
- 24 x 10/100 Fast Ethernet ports (PoE-enabled)
- 2 x Gigabit Ethernet copper ports
- 2 x SFP combo ports
Performance
- Switching capacity: 12.8 Gbps
- MAC address table: 8K entries
- Forwarding rate: up to 1,488,000 pps (1 Gbps)
- Jumbo frame support
Power & Energy
- AC input: 100–240V, 50/60Hz
- Max power consumption: 241W
- PoE budget: 194W
- 24 PoE ports, including 4 PoE+
Management & Security
- Web-based management
- Support for ACL, MAC filtering, and MAC-based authentication
- QoS with 4 hardware queues
- System event logging
- Standards-based MIB support (RFC 1213, RFC 1643, RFC 1493, RFC 2131)
Layer 2 Features
- Port-based and tagged VLANs
- IGMP snooping
- Spanning Tree Protocol (STP)
- Storm control, port mirroring, flow control
- Link aggregation
Environmental
- Operating temperature: 0°C to 40°C
- Operating humidity: 5% to 90% (non-condensing)
Design & Dimensions
- Form factor: 1U rack-mountable / desktop / wall-mount
- Dimensions: 410 x 210 x 44 mm
- Weight: 5 kg
- Color: Gray
