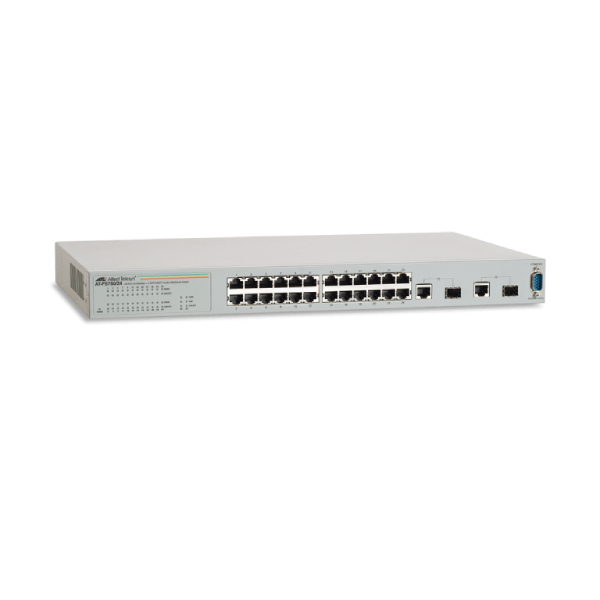

This high-performance 24-Port Fast Ethernet PoE switch is engineered for power-efficient, reliable network connectivity, offering seamless support for both 1000T and SFP uplinks. It is designed for flexible installation and long-term durability in office and industrial environments.
Features & Benefits
Performance
- 14,880 pps for 10Mbps Ethernet
- 148,800 pps for 100Mbps Ethernet
- 1,488,000 pps for 1000Mbps Ethernet
- 8K MAC address table
- 512KB packet buffer for efficient data handling
Power Characteristics
- Voltage: 100–240V AC
- Frequency: 50/60Hz
- Current: 0.3A
Interface Connections
- 10/100TX RJ-45
- 1000FX (SFP) – 1000SX or 1000LX
- 1000T RJ-45
Environmental Specifications
- Operating Temperature: 0°C to 40°C
- Non-operating Temperature: -25°C to 70°C
- Operating Humidity: 5% to 90% non-condensing
- Storage Humidity: 5% to 95% non-condensing
Physical Characteristics
- Dimensions: 44.0 x 25.7 x 4.32 cm
- Weight: 3.24 kg
- Mounting: Desktop, wall, or 19″ rack mount
Standards & Compliance
- IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x
- IEEE 802.1p Prioritization, IEEE 802.1x Authentication
- IEEE 802.1d Bridging, IEEE 802.3ad Link Aggregation
- Certifications: UL 1950, FCC/EN55022 Class A, VCCI Class A, C-Tick, EN60950, EN55024, CE
Package Contents
- Switch unit
- RS232 cable
- Rackmount/Wall-mount brackets and screws
- Power cord
- User manual and installation guide on CD
- Rubber feet
