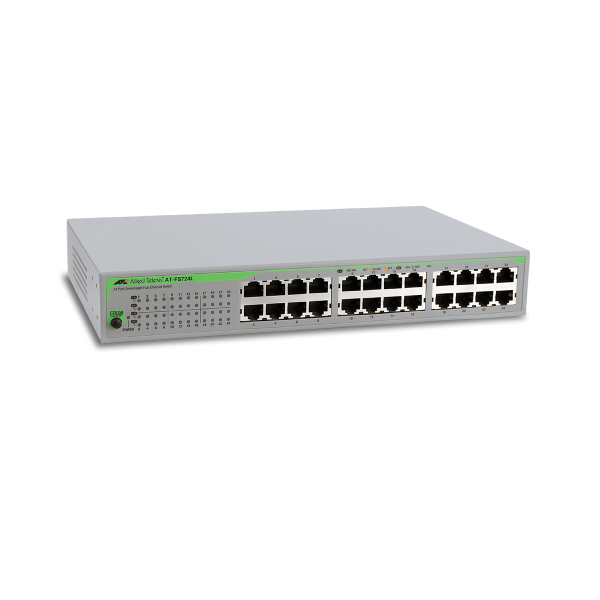

The 24-Port Fast Ethernet Switch is a reliable and efficient networking solution for small to medium-sized environments. It supports seamless connectivity with essential features like flow control, auto-negotiation, and auto MDI/MDIX. With a robust metal enclosure and internal power supply, it ensures stable performance in demanding conditions.
Features & Benefits
- 24 x 10/100 Mbps Fast Ethernet ports
- Non-blocking architecture for wirespeed switching
- Auto-negotiation and auto-uplink (MDI/MDIX) for easy setup
- Flow control and VLAN transparency for smooth data transmission
- Internal power supply with AC 120/230V support
- Compact desktop form factor with optional rack-mounting
Technical Specifications
Device Type: Switch – 24 ports
Enclosure Type: Desktop
Subtype: Fast Ethernet
Ports: 24 x 10/100 RJ-45
MAC Address Table: 4K entries
Flash Memory: 256 KB DRAM
Connectivity
Interfaces: 24 x 100Base-TX – RJ-45
Standards: IEEE 802.3, 802.3u, 802.3x
Power
Power Supply: Internal
Voltage Required: AC 120/230 V (50/60 Hz)
Physical & Environmental
Dimensions (W x D x H): 29.4 x 17.4 x 4.3 cm
Weight: 2.5 kg
Operating Temperature: 0°C to 40°C
Humidity: 5 – 80%
Compliance & Warranty
Certifications: TUV, VCCI Class B, EN60950, UL 1950, CSA 22.2, EN55024, EN55022 Class B
Warranty: Limited lifetime warranty
