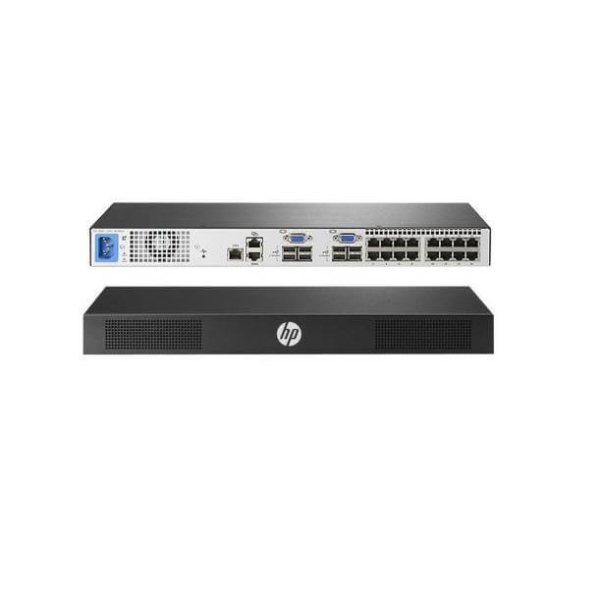

The HPE KVM Analog Console Switch allows centralized management of up to 256 rackmount servers through a single user interface. Featuring a local On-Screen Display (OSD) accessed via rack consoles like the HPE LCD8500, it provides intuitive menus for easy server and serial device control.
Optional USB Remote Access Key enables KVM-over-IP functionality for remote management through the On-Board Web Interface (OBWI). Available in 4, 8, and 16-port models, it can be mounted in standard 1U rack space or a zero-U side-rail profile.
Specifications:
- Manufacturer: Hewlett-Packard
- Brand: HPE
- Product Line: HPE KVM Console G3 Switch
- Model: 0x2x16
- Packaged Quantity: 1
- Type: Rack-mountable KVM switch, cascadable
- Ports: 16 KVM, USB keyboard/mouse, CAT5 server connections
- Local Users: 2
- Interfaces: 4 × USB mouse, 4 × USB keyboard, 16 × KVM RJ-45, 2 × VGA HD-15, 1 × management, 1 × cascading RJ-45
- Cable Included: 1 × DB-9 to RJ-45 adapter
- Power: Internal, AC 120/230 V, 50/60 Hz
- Rack Mount Kit: Included
- Dimensions: 17.2″ W × 6.5″ D × 1.7″ H
- Weight: 4.5 lbs
